Brand Name : Noonlight
Model Number : N-TF
Certification : DLC / ETL / RoHS
Place of Origin : China
MOQ : 300
Price : Negotiation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability : 10000 Piece/Pieces per Month
Delivery Time : 30+ working days
Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm
Product Name : Bi-level PIR Sensor Integrated 1FT x4FT 128w Equivalent LED PANEL CCT & POWER ADJUSTABLE
Input Voltage(V) : AC 100-277V
Power : 27W-24W-20W-16W Adjustable
CCT : 30K/35K/40K/50K CCT Tunable
Waterproof : IP-65
Warranty(Year) : 5 years warrantly
Bi-level PIR Sensor Integrated 1FT x4FT 128w Equivalent LED PANEL CCT & POWER ADJUSTABLE


|
Model No |
DLC |
Input Voltage |
Rated Wattage |
Lens |
Color |
Rated Lumen @3000K |
Rated Efficacy |
Viewing Angle |
Rated Lifetime |
Replacing |
| Power Adjustable, CCT Tunable, 0-10V Dimmable, Troffer LED Fixture, Standard Version | ||||||||||
|
N-TF-14-27-XX-WC1- [BLANK,HV]- [S1, S2, S3, S4, S5, S6, BLANK)--[SL, F] |
P |
120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable |
27W | Frosted |
30K 35K 40K 50K |
3375LM |
125LM/W | 120 ° |
L70> 50000hrs |
60W - 200W Incandescent |
|
N-TF-14-24-XX-WC1- [BLANK,HV]- [S1, S2, S3, S4, S5, S6, BLANK)--[SL, F] |
P |
24W |
3000LM |
|||||||
|
N-TF-14-20-XX-WC1- [BLANK,HV]- [S1, S2, S3, S4, S5, S6, BLANK)--[SL, F] |
P |
20W |
2500LM |
|||||||
|
|
|
16W |
2000LM |
|||||||

Suitable for T grid recessed mounted, suspended mounted.



Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting
Specification
Default Setting/Setting

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE





Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.


Schools, offices, conference room, hospitality etc.
|
|

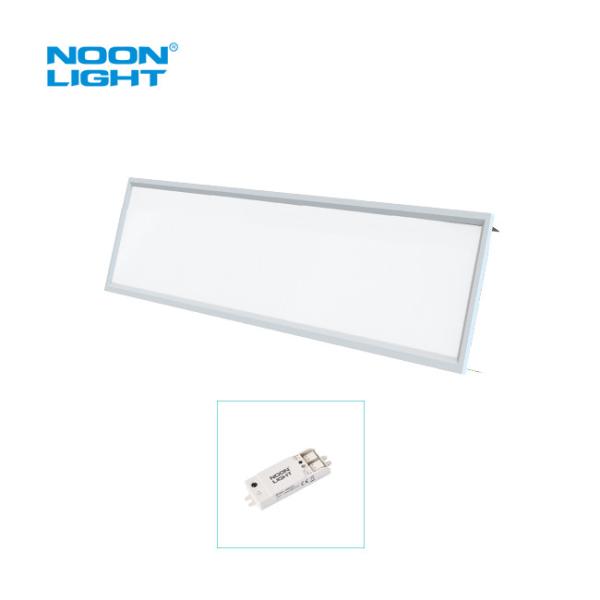

IP65 Waterproof Backlit LED Panel Light 1FTX4FT CCT Tunable Images |
